Backhoe Loader Tiltrotator

CATSU can provide backhoe loader tilt rotators that can be mounted directly on the backhoe loader arms. The backhoe loader tilt rotator has a lubricated gearbox that can rotate 360° and tilt 40°, convenient to grab items. The tilt rotator can be easily manipulated by the Backhoe Loader's joystick or rocker switch, allowing operators to perform advanced and precise work easily and efficiently. This also ensures the safety of the operators and the people working near the machine. The backhoe loader tilt rotator is suitable for most backhoe loader brands, and customization service is provided according to your requirements. Here are two tilt rotating devices obtained CE certification.

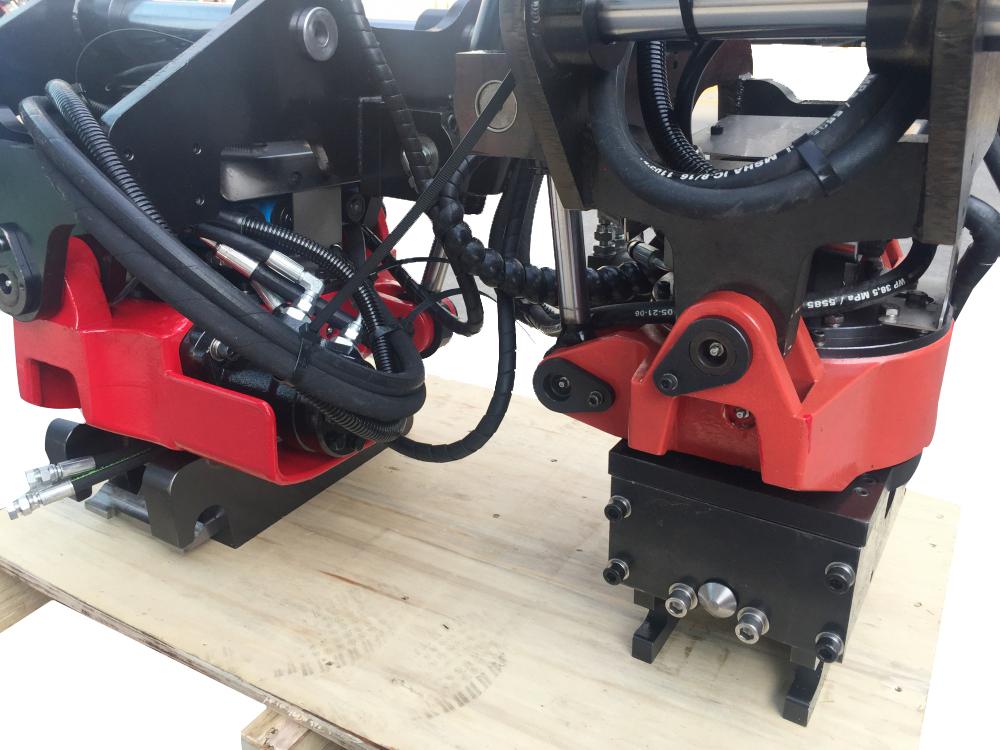

CT02 Backhoe Loader Tilt Rotator
  • Backhoe Loader Tiltrotator
  • Backhoe Loader Tiltrotator

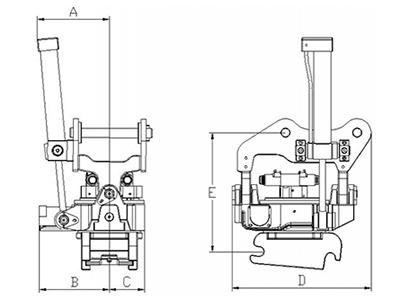

Parameters
Width A 245
Width B 234
Width C 112
Overall Length D 720
Construction Height E 380
Base Machine Weight 2-4 t
Weight (From) 120 kg
Tilt Range 2×40°
Standard Mountings S30 S40
Max Bucket Width Recommended 1000 mm
Recommended Hydraulic Flow SS5/SS10 30 l/min
Recommended Hydraulic Flow SS9 Tilt/Rotation 15/30 15/30
Max Hydraulic Pressure 22 Mpa
Max Tensile Stress 26 kNm
Max Breakout Force 30kNm
Max Breakout Torque 36kNm
Turn Torque 1700 Nm at 21 Mpa
Tilt Torque Double Acting Cylinders 6000 Nm
Rotation Speed (1 Turn in) 10－25 l/min
Nr of Lubrication Points 1

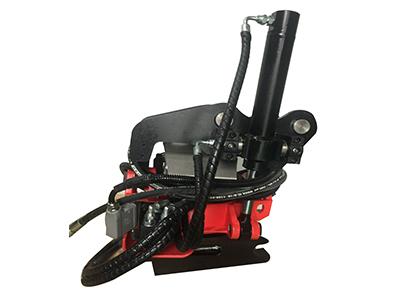

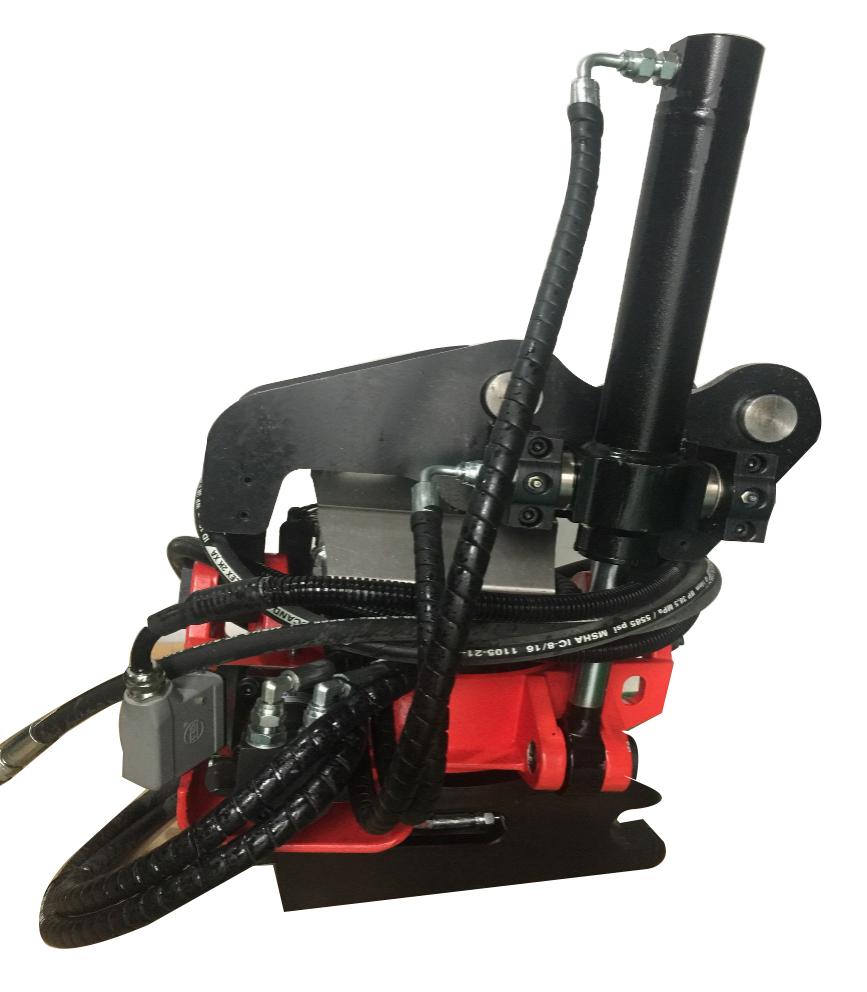

CT05 Backhoe Loader Tilt Rotator
  • Backhoe Loader Tilt Rotator
  • Backhoe Loader Tilt Rotator

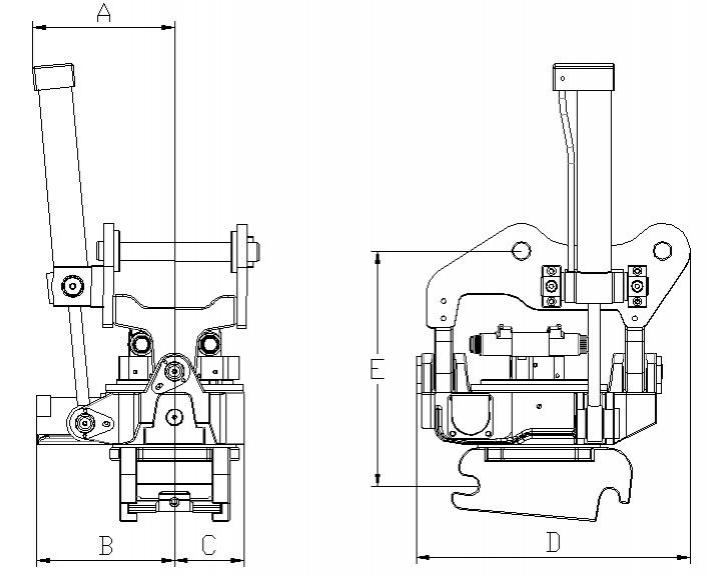

Parameters
Width A 380
Width B 230
Width C 270
Overall Length D 500
Construction Height E 380
Base Machine Weight 4-7 t
Weight (From) 180 kg
Tilt Range 2×40°
Standard Mountings s40 s45 s50
Max Bucket Width Recommended 1200 mm
Recommended Hydraulic Flow SS5/SS10 40 l/min
Recommended Hydraulic Flow SS9 Tilt/Rotation 15/30 15/30
Max Hydraulic Pressure 22 Mpa
Max Tensile Stress 45 kNm
Max Breakout Force 50kN
Max Breakout Torque 43kNm
Turn Torque 3900 Nm at 25 Mpa
Tilt Torque Double Acting Cylinders 14400 Nm
Rotation Speed (1 Turn in) 10－30 l/min
Nr of Lubrication Points 1
