Custom Cyclinder

Our company offers both custom heavy duty hydraulic cylinder and hydraulic system solution. We have focused on manufacturing hydraulic cylinders and building various heavy duty hydraulic device systems for different customers.
Hydraulic Cylinder Manufacturing Process
  • Tube(Barrel)
  • Piston Rod
  • Piston Guide Sleeve
  • Cylinder Head, Rod Head
  • Tube Body
  • Assembly
Materials of Hydraulic Cylinder

Cylinder tube uses 45# steel, 42CrMo4 or ST52. Piston rod uses stainless steel bar. All sealing elements are from internationally famous brands, such as NOK, Merkel, Hallite, Trelleborg, etc.

Quality Control

All hydraulic cylinders delivered to the customer are all gone through several tests, including pressure testing, finish testing, hardness testing, ultrasonic testing, weld testing, paint layer testing, hydraulic oil cleanliness testing, etc.

Custom Process

We can manufacture according to the detailed drawings you offer. If you don’t have drawings, you can tell us your specific requirements. Our engineers will design production plans to meet your exact expectations.

Example

These are the custom heavy duty hydraulic cylinders we have produced for various clients.

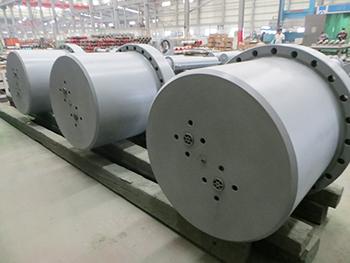

    1. Custom Heavy Load Cylinder
    2. Custom Heavy Load CylinderWe can customize the heavy duty hydraulic cylinder for different customers. The heavy duty hydraulic cylinder is generally applied to heavy equipment such as hydropower station gates, maritime cranes, excavators and hydraulic presses.

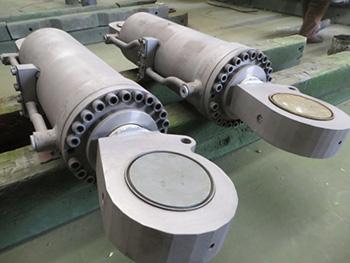

    1. Custom Large Hydraulic Cylinder
    2. Custom Large Hydraulic CylinderCATSU has over 20 years of experience in designing and production. We specialize in customizing large hydraulic cylinder according to customer’s requirements and these cylinders can be applied to large equipment.

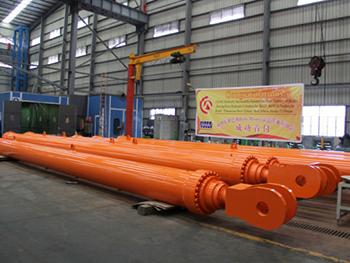

    1. Custom Long Stroke Cylinder
    2. Custom Long Stroke CylinderCustom long stroke hydraulic cylinder is available according to customer’s requirements. The maximum stroke of hydraulic cylinder we have customized is 25m. Long stroke hydraulic cylinder can be applied to radial gates of hydropower stations.

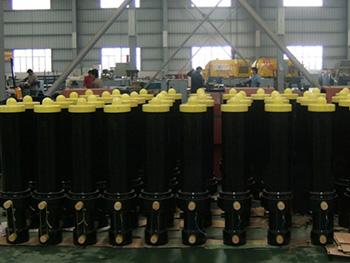

    1. Custom Stage Telescopic Cylinder
    2. Custom Stage Telescopic CylinderCASTU is capable of customizing telescopic hydraulic cylinders for clients, up to 6-step hydraulic cylinder, stroke up to 24m and bore size up to 800mm.
      Telescopic hydraulic cylinders are commonly used on construction vehicles such as dump trucks.

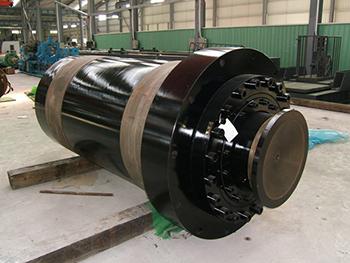

    1. Custom Large Bore Hydraulic Cylinder
    2. Custom Large Bore Hydraulic CylinderCATSU is a professional manufacturer of custom large bore hydraulic cylinders, which can be customized in according to customer’s actual requirements. The bore diameter of the custom hydraulic cylinder is up to 2 m. Our large bore hydraulic...
